Holley Hi-Ram Intake Manifold - Ford Coyote Engine

Like the other Coyote Hi-Ram manifold kits, included are fuel rails for use with OEM type fuel injectors and clips, mounting hardware, and O-ring gaskets. Offered in black and natural as-cast finish, both manifolds have a 9.20-inch runner length, ample plenum volume, and are designed to improve the mid to high RPM powerband. The 300-915/BK simplifies the fabrication of inlet piping which is more simply mated to a round throttle body. In combination with the Hi-Ram top-feed plenum flange which accepts plenum mounted intercoolers, 300-915/BK may become the favored Coyote Hi-Ram for forced induction engine builds. Another new Ford Coyote Hi-Ram version is ready for release. 300-915, natural finish, and 300-915BK, black finish, are top-feed plenum Coyote Hi-Ram intake manifold kits with a new plenum top that provides mounting for round throttle bodies. Standard mounting patterns on the throttle body flange with a 93mm flange opening include GT350, GT500, and LS 4-bolt throttle bodies. 2011-2013 GT throttle bodies may be used with the optional 717-18 adaptor.

Features & Benefits
Allows a variety of throttle valves including large monoblade, 2015-20 GT350, 2007-14 GT500, 2019-23 GT500, GM LS 4 bolt, 2011-23 Ford Mustang GT (with optional adapter 717-18)

Fits: Hi-Ram / Natural Finish / Coyote Engine

In the box: Fuel Rail(s), Gasket Or Seal, Intake Port Gasket(s)

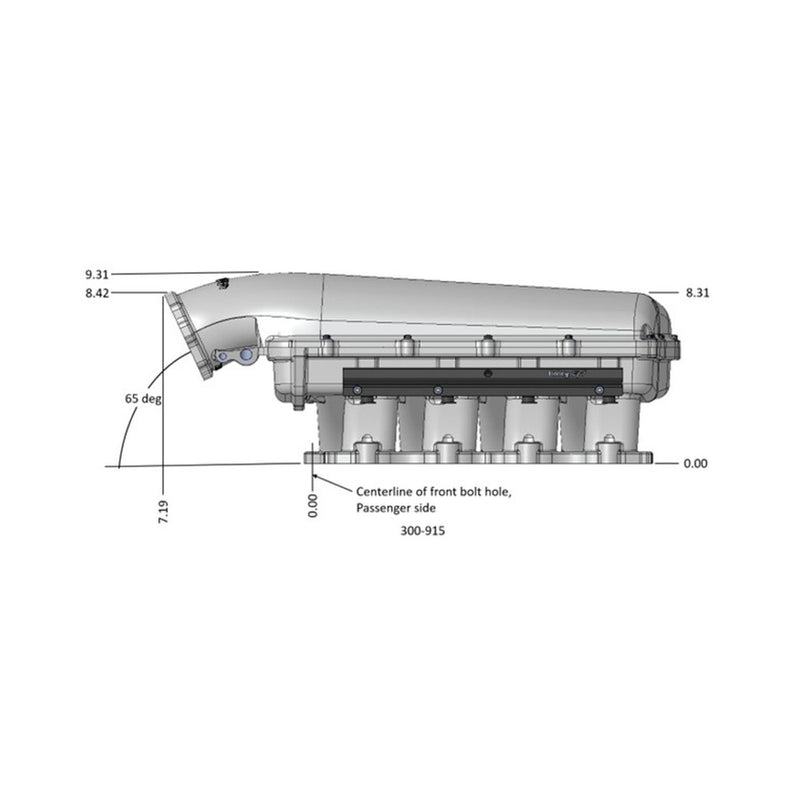

Specifications

Product Video
