Product • Support • Tuning
Part # 12-982
$562.95
These Drop-in modules have been designed to the highest quality standards to provide increased performance and fuel efficiency for most stock, turbo, and supercharged applications capable of supporting 550+ horsepower.
Features & Benefits
Designed for return line and pulse width modulation (PWM)

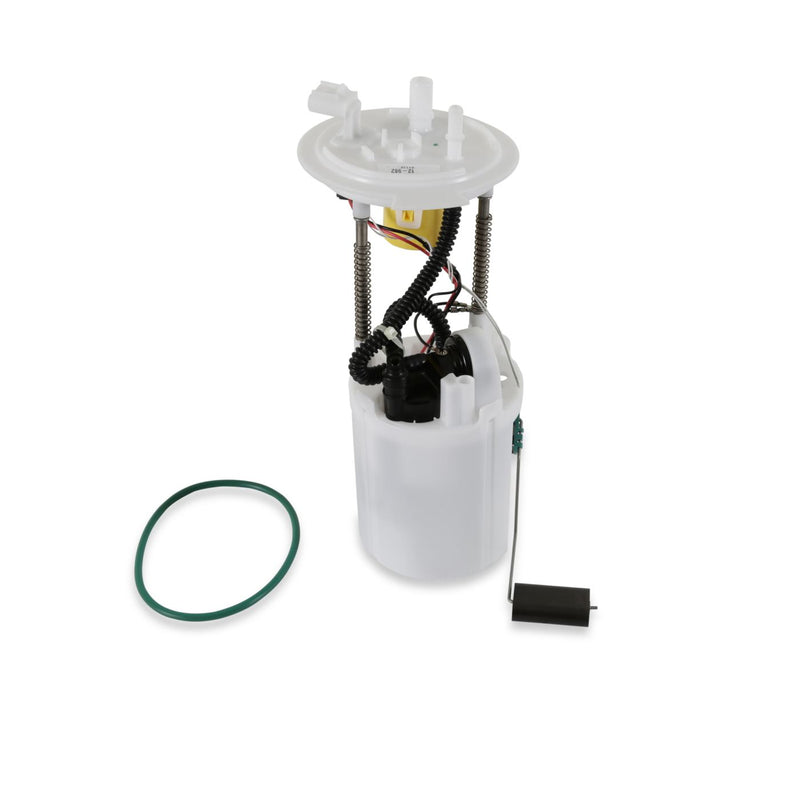

Fits: 255 LPH Drop-In Fuel Module assembly for 09-14 F-150, 3.7/4.6/5.0/5.4 Flex Fuel _x000D_ 145”, 157” & 163” wheelbase, Excludes extended range tanks
Installation note: TU294HP
TU294HP
In the box: Fuel Filter, Fuel Sending Unit, Gasket Or Seal
| Average Flow Rating | 255 L/h |
| Free Flow GPH | 50 |
| Free Flow LPH | 255 |
| Fuel System | EFI |
| Fuel Type | Gasoline / Ethanol / Methanol / E85 |
| Gasket Or Seal Material | Rubber |
| Height | Standard |
| Housing Material | Plastic |
| In Tank or External | In Tank |
| Inlet Type | Barb |
| Internal Or External Strainer | External |
| Negative Ground | Yes |
| Outlet Type | Barb |
| Pump Type | Electric |
| Resistance Ohms Empty | 16 Ohms |
| Resistance Ohms Full | 158 Ohms |
| Universal Or Specific Fit | Specific |
| Voltage | 12 2H |
