Product • Support • Tuning
Part # 12-944
$467.95
These Drop-in modules have been designed to the highest quality standards to provide increased performance and fuel efficiency for most stock, turbo, and supercharged applications capable of supporting 600+ horsepower.
Features & Benefits
Designed for return line and pulse width modulation (PWM)

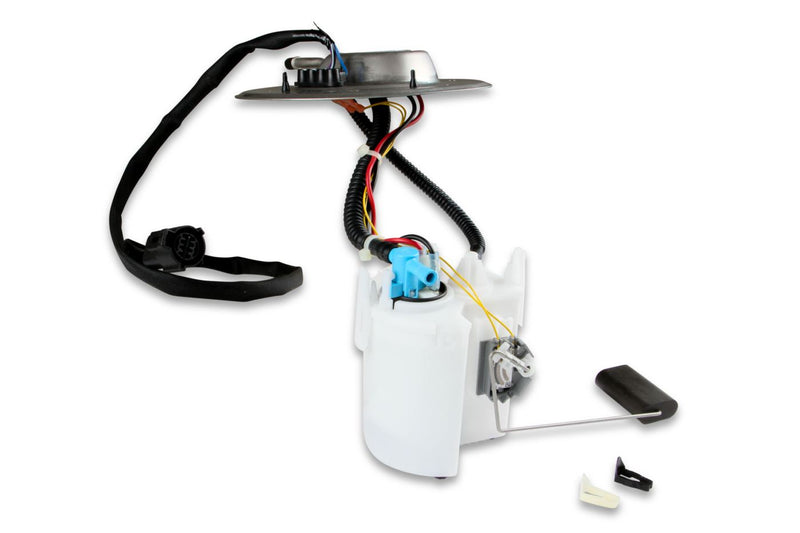

Fits: 255 LPH Drop-In Fuel Module assembly for 1998 Ford Mustang models (except California vehicles)
Installation note: TU227HP
TU227HP
In the box: Fuel Filter, Fuel Sending Unit, Wire Harness
| Average Current Draw | 10.4 A |
| Average Flow Rating | 255 L/h |
| Connector Color | Black |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Free Flow GPH | 67 |
| Free Flow LPH | 255 |
| Fuel System | EFI |
| Fuel Type | Gasoline |
| Height | Standard |
| Housing Material | Plastic |
| In Tank or External | In Tank |
| Inlet Quantity | One |
| Inlet Size | 3/8 inch Barb |
| Inlet Type | Barb |
| Internal Or External Strainer | External |
| Maximum Pressure | 60 PS |
| Negative Ground | Yes |
| Outlet Quantity | One |
| Outlet Size | 5/16 Barb |
| Outlet Type | Barb |
| Pump Type | Electric |
| Resistance Ohms Empty | 40 Ohms |
| Resistance Ohms Full | 250 Ohms |
| Universal Or Specific Fit | Specific |
| Voltage | 12 2H |
| Wire Quantity | 4 |
