Part # 12-920
$380.95

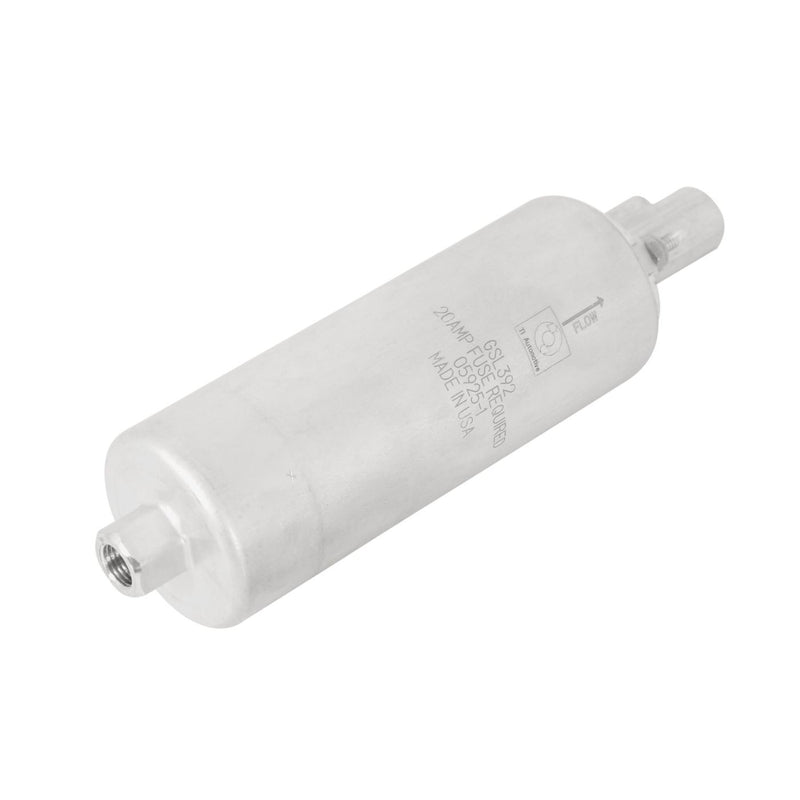

The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.
Features & Benefits
Rubber isolator, mounting clamps and electrical hardware included
Fits: Street/Strip EFI Applications Compatible with Gasoline only
Installation note: Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. 10mm x 1.0 inlet and outlets. Includes 10mm x 1.0 gasket sealed 3/8" Outside diameter hose barbs. A/N adapters are available: -6 AN, Part number 26-160. -8 AN, Part number 26-180
In the box: Mounting Hardware
| Bracket Color | Black |
| Coast Guard Approved | Yes |
| Color | Silver |
| Finish | Zinc |
| Forced Induction HP@43PSI | 600 |
| Free Flow GPH | 80 |
| Free Flow LPH | 302 |
| Fuel Delivery Type | Fuel Injection |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| GPH@15PSI | 80 |
| GPH@43PSI | 67 |
| GPH@60PSI | 62 |
| GPH@8PSI | 85 |
| Inlet Fitting Thread Size | 10x1.0 MM |
| Inlet Size | 10mm x 1.0 |
| Internal Or External | External |
| LPH@15PSI | 302 |
| LPH@43PSI | 254 |
| LPH@60PSI | 235 |
| LPH@8PSI | 322 |
| Material | Steel |
| Maximum Flow Rating | 85 |
| Maximum Pressure | 60 PS |
| Naturally Aspirated HP@15PSI | 800 |
| Naturally Aspirated HP@43PSI | 700 |
| Naturally Aspirated HP@8PSI | 850 |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 10x1.0 MM |
| Outlet Quantity | 1 |
| Outlet Size | 10mm x 1.0 |
| Pump Body Color | Silver |
| Terminal Quantity | 2 |
| Universal Or Specific Fit | Universal |
| Voltage | 12 2H |
| Wire Quantity | 2 |
