Part # 12-428
$103.95

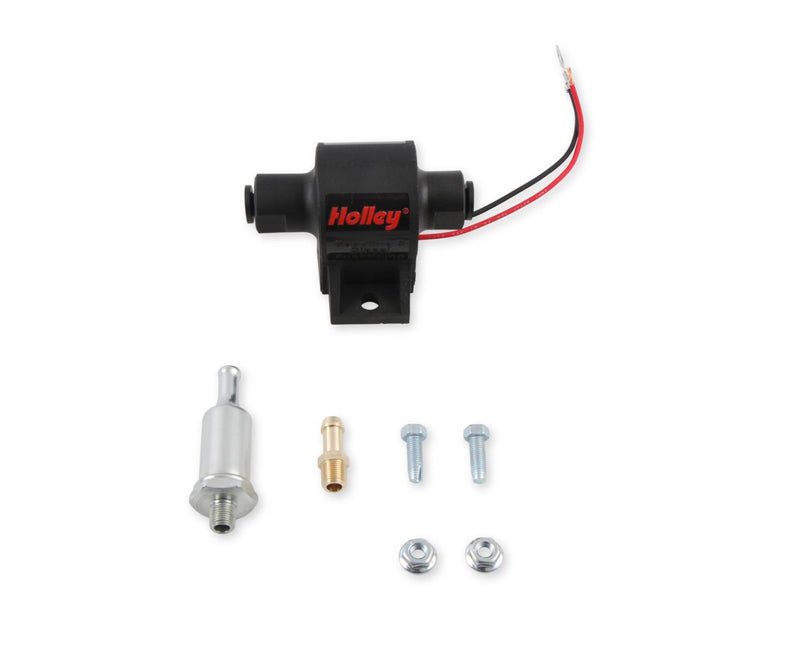

Holley pumps have fueled more performance engines than all others and the Holley line keeps on growing! Holley is proud to introduce the all new Holley Mighty Mite™ electric fuel pumps! They're big on performance, but small in size! They're quiet, easy to install and work with gas, diesel, blended alcohol and E85! A regulator may be needed for carbureted applications requiring less fuel pressure. We recommend the Holley 12-803 or 12-804 fuel pressure regulator.
Features & Benefits
Engineered and matched performance with Holley®, Demon®, Quick Fuel® and Edelbrock® carburetors(all trademarks are property of their respective owners. Edelbrock is a registered trademark of Edelbrock,LLC)
Fits: Street Carbureted or Diesel Applications Compatible with all fuels and fuel additives
Installation note: Should be mounted within 50" of the fuel tank. Mounting holes are 2 3/8" apart. ***This model does not have a one-way check valve or an anti-siphon valve, so fuel can be pulled in either direction when the pump is turned off. Perfect for a Diesel lift pump! Ideal for use with Earl's Vapor Guard Carburetor Hose!
In the box: Mounting Hardware
| Average Flow Rating | 34 GPH |
| Bracket Color | Black |
| Color | Black |
| Depth | 11.1 |
| Finish | Plastic |
| Free Flow GPH | 34 |
| Free Flow LPH | 129 |
| Fuel Delivery Type | Carburetor |
| Fuel System | Carbureted |
| Fuel Type | All Types |
| Hose Size | 5/16 |
| Inlet | 1/8 inch NPT |
| Inlet Fitting Thread Size | 1/8 IN |
| Inlet Fitting Thread Type Standard | NPT |
| Inlet Qty | 1 |
| Inlet Size | 1/8 inch NPT |
| Inlet Type | NPT |
| Internal Or External | External |
| Length | 5.15 |
| Material | Steel |
| Max Pressure | 10 psi |
| Maximum Flow Rating | 34 |
| Maximum Pressure | 10 PS |
| Motor Finish | Black |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 1/8 IN |
| Outlet Quantity | 1 |
| Outlet Size | 1/8 inch NPT |
| Outlet Type | NPT |
| Pressure Range | 7-10 PSI |
| Pump Body Color | Black |
| Terminal Quantity | 2 |
| Universal Or Specific Fit | Universal |
| Voltage | 12 2H |
| Weight | 0.8 LB |
| Wire Quantity | 2 |
