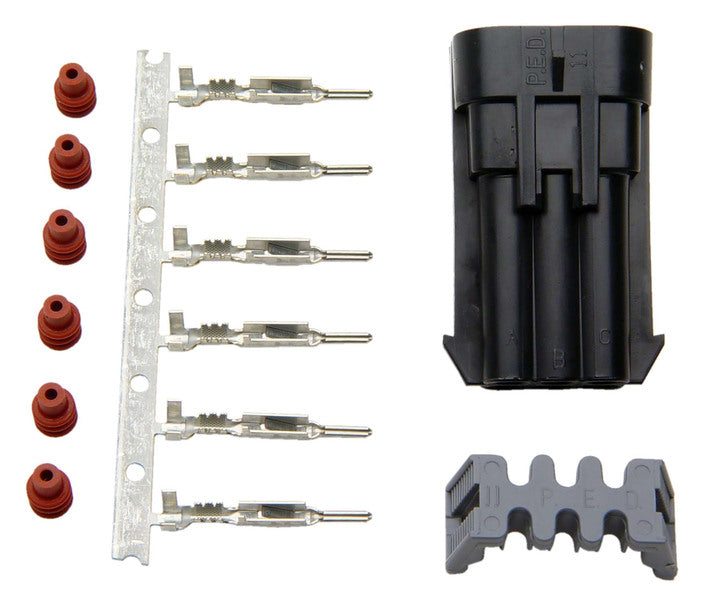

Connector Kit, Fast Power Adde R

Part Number 301400K Connector Kit: Includes: Connectors, Terminals, and Seals - NO Wires. FAST XFI/XFI 2.0 has provisions for the use of power adders (Ex: Nitrous and Turbo Applications). There are four separate stages of power adder control available. Each stage also allows for changes to fueling and ignition timing using a variety of control strategies. The first stage allows for a and Progressive and controlled power adder, which will allow for a power adder as well as supplemental fuel to be ramped in at any rate over time. The stages occur one after the other at specific intervals. These intervals are user programmable. The first stage the timer for the second through fourth stages - begins when three conditions have been met. The TPS and RPM values must be above user-programmed thresholds and battery voltage must be applied to the Power Adder Enable input. This can be wired to a dash-mounted switch to allow the driver to enable the power adder functions. Or in a drag racing application, it might be wired to a clutch pedal switch or a trans brake switch.
