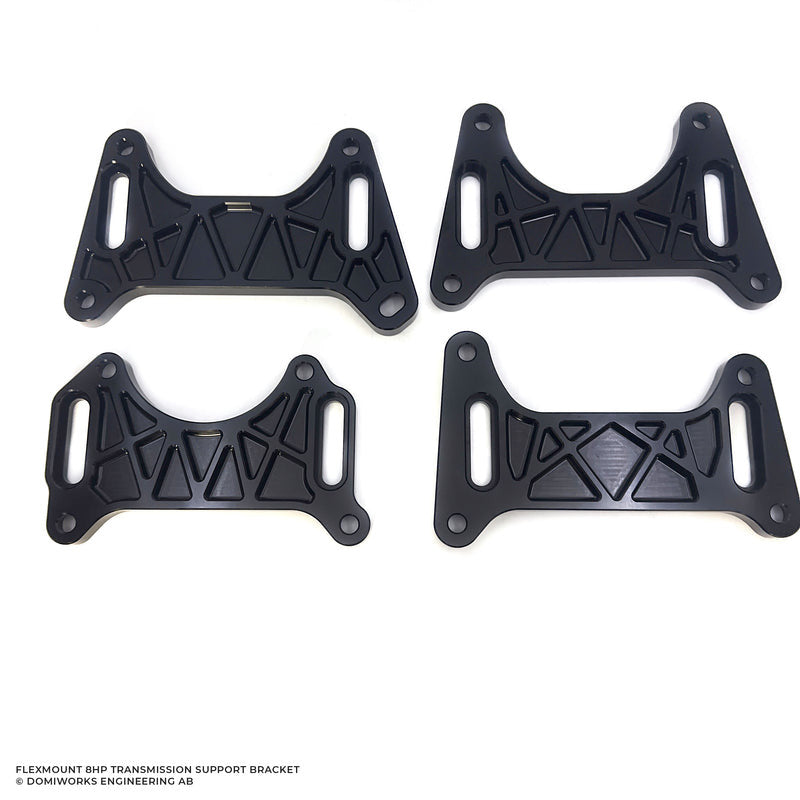

DomiWorks FlexMount 2.0 - 8HP Transmission Support Bracket, Dodge ScatPack / Hellcat

FlexMount 2.0 — 8HP transmission support bracket, for the Dodge ScatPack and Hellcat RWD transmissions. The most adjustable support bracket on the market.

It has a vertical adjustment range of 40 mm across 16 discrete steps, so you can set the height in 2.5 mm increments.

Why fixed steps instead of slots

The usual way to make a mount adjustable is elongated holes, relying purely on friction from a tightened bolt. Over time the mount sees high dynamic load and a wide temperature cycle — over 100 °C of delta — and the transmission can walk out of position. When that happens the back of the box sits closer to the ground and puts needless stress on the propshaft. Fixed positions remove that risk completely.

Features

• 40 mm of vertical adjustment in 16 steps of 2.5 mm
• Three pairs of T-slotted inserts, so every height combination is available
• Inserts carry an O-ring so they do not fall out when mounted
• Inserts machined from high-strength steel and black oxidized
• Bolts to the back of the transmission
• Made for OEM bushings in the standard angled position for maximum stability — OEM bushings have proven superior for handling and NVH in street applications
