Part # 13224
$312.93

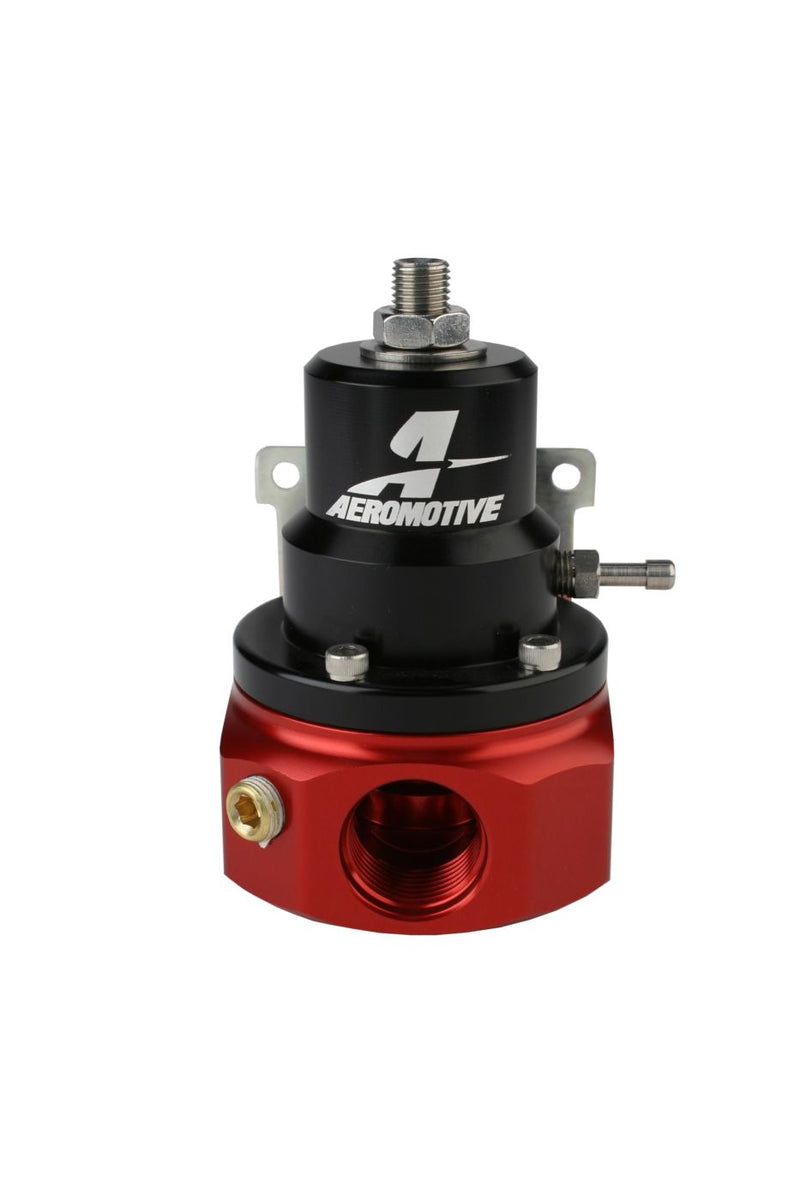

The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carbureted application. These regulators are perfect for naturally aspirated or blow-through supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13224 provides (4) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.
Fits: A1000 4-Port Carbureted Bypass Regulator, 4 x AN-06, 1 x AN-10.
Installation note: A1000 carbureted bypass regulator; adjustable from 3-15 PSI; perfect for naturally aspirated engines; bypass desing provides the ultimate, dynamic fuel delivery system.
In the box: Mounting Bracket
| Adjustable | Yes |
| Color | Black/Red |
| Fuel Delivery Type | Carburation |
| Gauge Port | Yes |
| Inlet Gender | Female |
| Inlet Gender.1 | Female |
| Inlet Port Diameter | ORB-10 |
| Marine Approved | No |
| Maximum Pressure | 15 |
| Minimum Pressure | 3 |
| Outlet Port Diameter | ORB-06 |
| Port Quantity | 5 |
| Pressure Range | 3-15 |
| Return Port Diameter | ORB-08 |
| Return Port Gender | Female |
| Vacuum/Boost Port | Yes |
