Part # 11203
$392.58

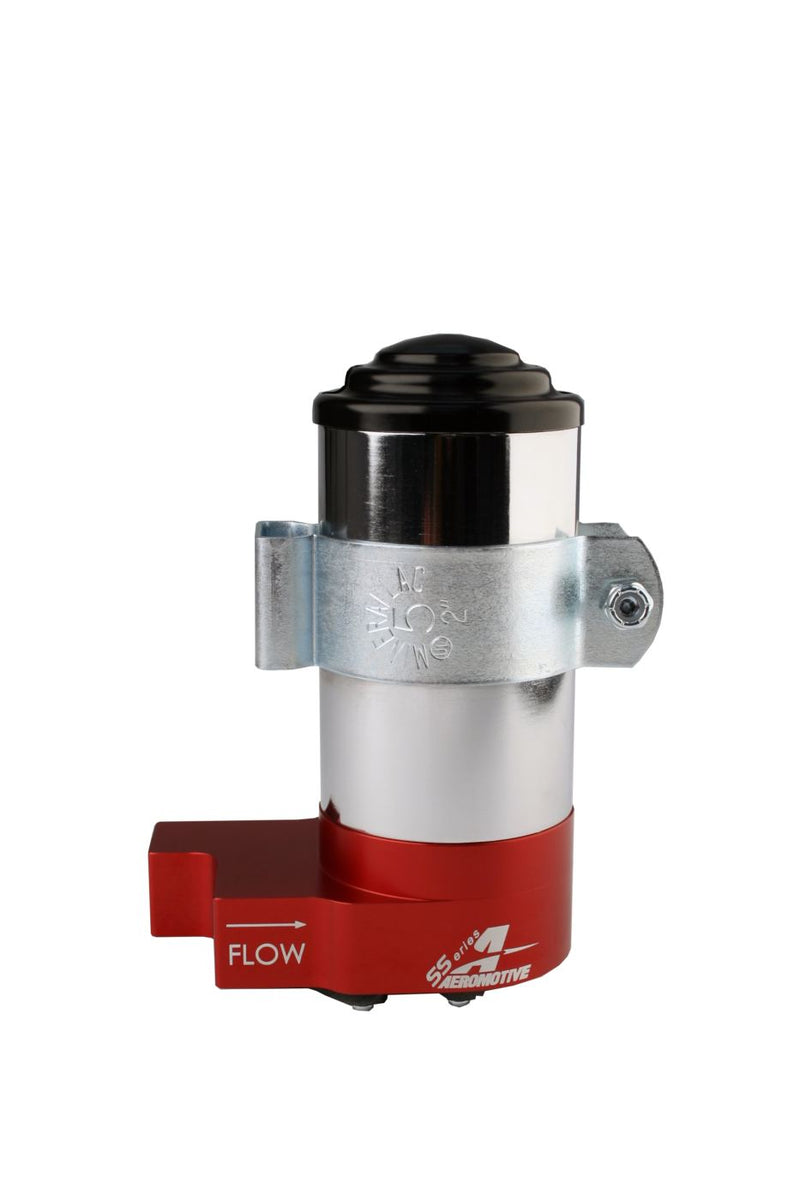

A carbureted fuel pump that allows you to step up your performance by maintaining optimal line pressure and delivering high volume. The Street/Strip Pump was engineered for 200-750 HP carbureted engines making this a perfect choice for a daily driver, street rod or demanding ET-bracket race car. P/N 11203 features 3/8' NPT inlet and outlet ports. Perfect for use with either a Bypass Regulator (P/N 13301) or one of our Carbureted Adjustable Regulators. (P/N 13201, 13205). Fuel flow exceeds 140 GPH at 13.5 volts. Pump provides 14 PSI fuel pressure - perfect for cars that leave hard. Pumping mechanism features our proprietary composite rotor, stainless steel vanes and precision ground, heat treated steel plates. Ideal for dedicated nitrous delivery. Alcohol compatible. Low current draw (under 5 amps).
Fits: SS Series Billet (14 PSI) Carbureted Fuel Pump (3/8 ? NPT) ports.
Installation note: SS carbureted fuel pump; supports up to 750 HP; continuous duty
In the box: Mounting Bracket
| Carb HP on E85 | 525 |
| Carb HP on Gas | 750 |
| Fuel Delivery Type | Carbureted |
| Fuel Type | Gas/E85 |
| Inlet Outside Diameter | 3/8" |
| Inlet Type | Female Thread |
| Integrated Controller | No |
| Marine Approved | No |
| Maximum Current Draw | 16 @ 9 psi |
| Maximum Flow Rating | 140 GPH |
| Maximum Pressure | 20 |
| Motor Style | Brushed |
| Negative Ground | Yes |
| Outlet Outside Diameter | 3/8" |
| Outlet Type | Female Thread |
| Pulse Width Modulation Compatible | Yes |
| Pump Design | Rotary Vane |
| Series | SS |
| Terminal Quantity | 0 |
| Terminal Type | Lead Wire |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
| Wire Quantity | 2 |
