Part # 11186
$1,824.50
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Features & Benefits
Fuel injected engines: METHANOL_x000D_
up to 1,190 FWHP – naturally aspirated_x000D_
up to 910 FWHP – forced air induction

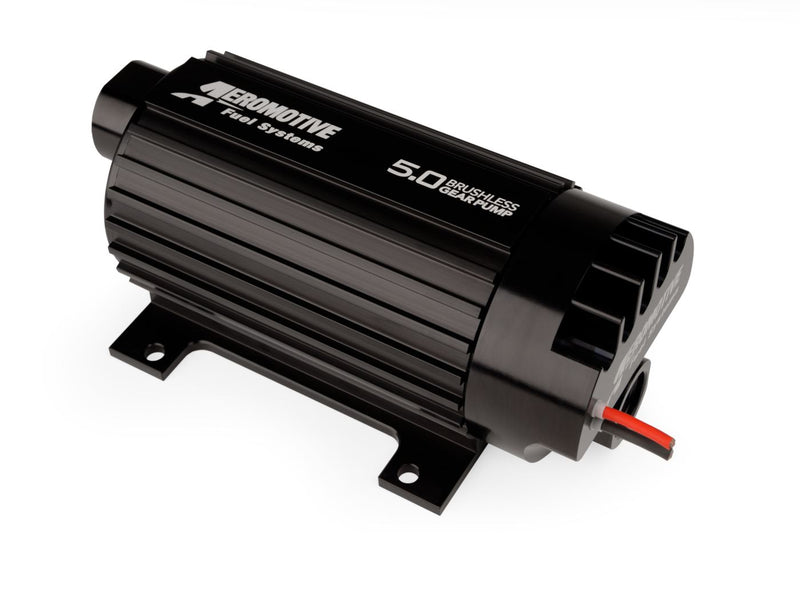

Fits: Fuel Pump, In-Line, Signature Brushless Spur Gear, 5.0gpm (Pump Sleeve Includes Mounting Provisions).
Installation note: Brushless Fuel Pump
In the box: Mounting Bracket
| Carb HP on E85 | 2520 |
| Carb HP on Gas | 3600 |
| EFI HP on E85 | 2380 |
| EFI HP on Gas | 3400 |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Fuel Type | Gas/E85 |
| Inlet Outside Diameter | ORB - 12 |
| Inlet Type | Female Thread |
| Integrated Controller | No |
| Internal Or External | External |
| Marine Approved | No |
| Maximum Current Draw | 12 @ 40 psi |
| Maximum Flow Rating | 5.0 GPM |
| Maximum Pressure | 90 |
| Motor Style | Brushless |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB - 10 |
| Outlet Type | Female Thread |
| Pulse Width Modulation Compatible | No |
| Pump Design | Spur Gear |
| Series | 5.0GPM |
| Terminal Quantity | 0 |
| Terminal Type | Lead Wire |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
| Wire Quantity | 2 |
