Part # 11106
$527.07

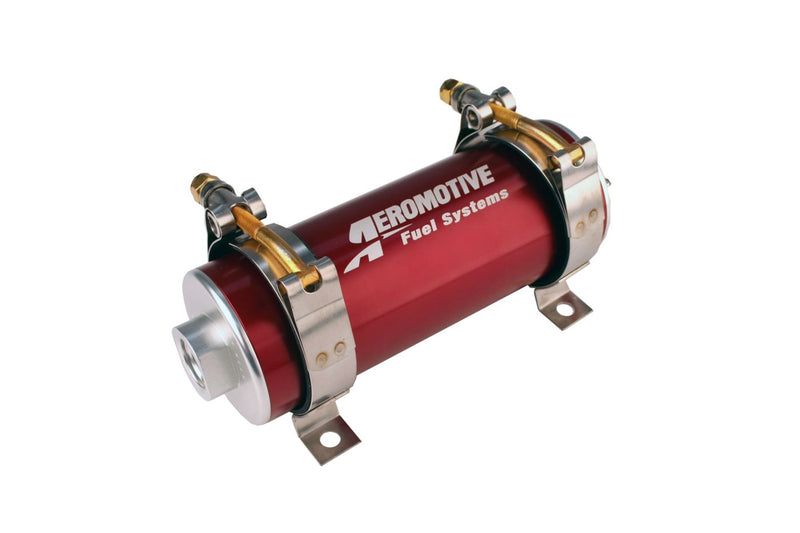

Compact, quiet and durable, these billet, in-line pumps are ideal for low to medium HP applications. Perfect for street rods and muscle cars, fuel injected or carbureted.
Features & Benefits
Fuel Injected Engines: up to 800 HP naturally aspirated and up to 600 HP forced air induction
Fits: A750 EFI Fuel Pump - Red.
Installation note: billet, in-line pump; ideal for low to medium HP applications; fuel injected or carbureted; up to 1000 HP depending on application
In the box: Mounting Bracket
| Carb HP on E85 | 700 |
| Carb HP on Gas | 1000 |
| EFI HP on E85 | 560 |
| EFI HP on Gas | 800 |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Fuel Type | Gas/E85 |
| Inlet Outside Diameter | ORB - 10 |
| Inlet Type | Female Thread |
| Integrated Controller | No |
| Internal Or External | External Or Internal |
| Maximum Current Draw | 10 @ 45 psi |
| Maximum Flow Rating | 750 |
| Maximum Pressure | 90 |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB-6 |
| Outlet Type | Female Thread |
| Pulse Width Modulation Compatible | Yes |
| Pump Design | Rotary Vane |
| Series | A750 |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Threaded Stud |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
| Wire Quantity | 0 |
