Product • Support • Tuning

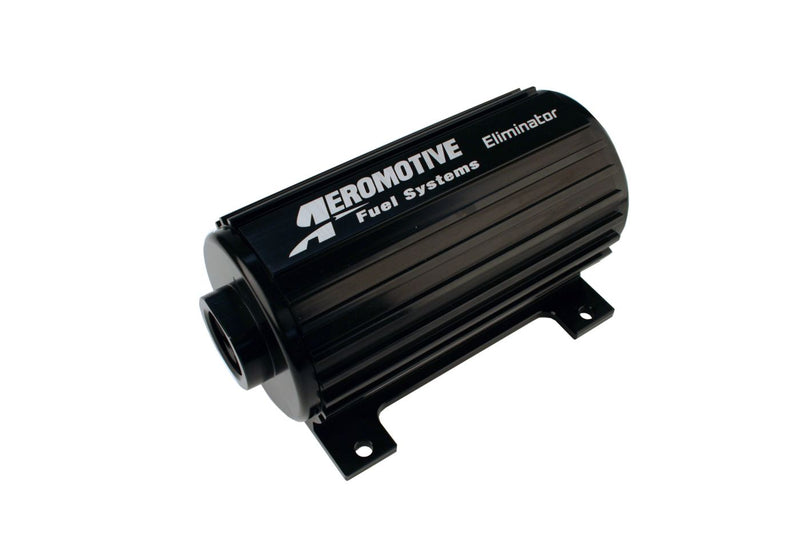

Part # 11104
$829.60
This continuous duty 'street warrior' supports big horsepower and maintains the drivability necessary for a true high-performance street car. Designed for high horsepower street/strip applications, EFI or Carbureted, it features our 'dual chamber' pumping mechanism.
Features & Benefits
Carbureted Engines: up to 2300 HP naturally aspirated and up to 1700 HP forced air induction. ORB-12 inlet port and ORB-10 outlet port.
Fits: Eliminator-Series Fuel Pump EFI or Carbureted applications.
Installation note: designed for high HP street/strip applications; EFI or carbureted; "dual chamber" pumping mechanism; up to 2300 HP, depending on application
In the box: Mounting Bracket
| Carb HP on E85 | 1610 |
| Carb HP on Gas | 2300 |
| EFI HP on E85 | 1330 |
| EFI HP on Gas | 1900 |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Fuel Type | Gas/E85 |
| Inlet Outside Diameter | ORB - 12 |
| Inlet Type | Female Thread |
| Integrated Controller | No |
| Internal Or External | External Or Internal |
| Marine Approved | No |
| Maximum Current Draw | 16 @ 45 psi |
| Maximum Flow Rating | 1250 |
| Maximum Pressure | 100 |
| Motor Style | Brushed |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB - 10 |
| Outlet Type | Female Thread |
| Pulse Width Modulation Compatible | Yes |
| Pump Design | Rotary Vane |
| Series | Eliminator |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Threaded Stud |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
| Wire Quantity | 0 |
