Part # 11102
$1,132.13

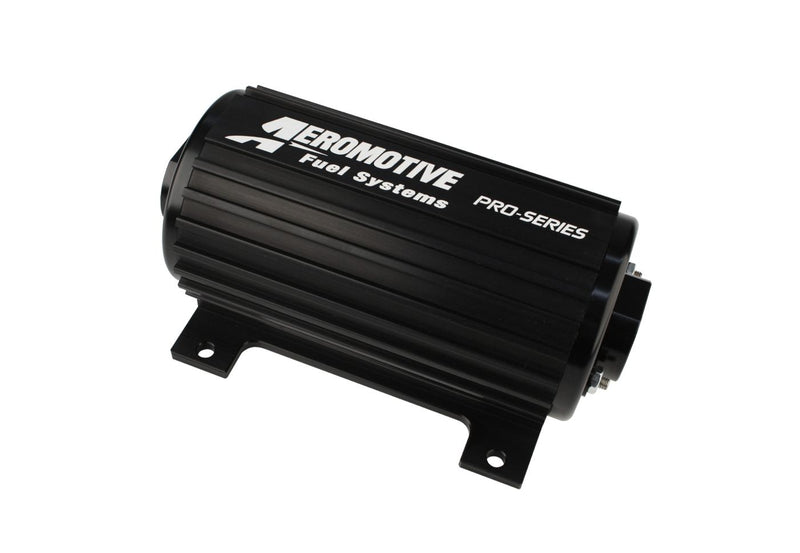

Designed for crazy horsepower, it's hard to find a more powerful, higher flowing, in-line fuel pump anywhere. Engineered for high-horsepower racing engines, this beautiful pump features our innovative 'dual chamber' pump design.
Features & Benefits
Carbureted engines: up to 2600 HP naturally aspirated and up to 2000 HP forced air induction. Has ORB-12 inlet and outlet ports. Two ORB-12 / AN-12 male adapter fittings included. Perfect for 'blow-through' carbureted engines up to 2000 HP
Fits: Pro-Series Fuel Pump - EFI or Carbureted applications (includes fittings & o-rings).
Installation note: Engineered for high HP racing engines; "dual chamber" pump design; EFI or carbureted; up to 2600 HP, depending on application
In the box: Mounting Bracket
| Carb HP on E85 | 1820 |
| Carb HP on Gas | 2600 |
| EFI HP on E85 | 1540 |
| EFI HP on Gas | 2200 |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Fuel Type | Gas/E85 |
| Inlet Outside Diameter | ORB - 12 |
| Inlet Type | Female Thread |
| Integrated Controller | No |
| Internal Or External | External Or Internal |
| Marine Approved | No |
| Maximum Current Draw | 14 @ 9 psi |
| Maximum Pressure | 90 |
| Motor Style | Brushed |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB - 12 |
| Outlet Type | Female Thread |
| Pulse Width Modulation Compatible | Yes |
| Pump Design | Rotary Vane |
| Series | Pro-Series |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Threaded Stud |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
| Wire Quantity | 0 |
