Part # 140011
$104.95

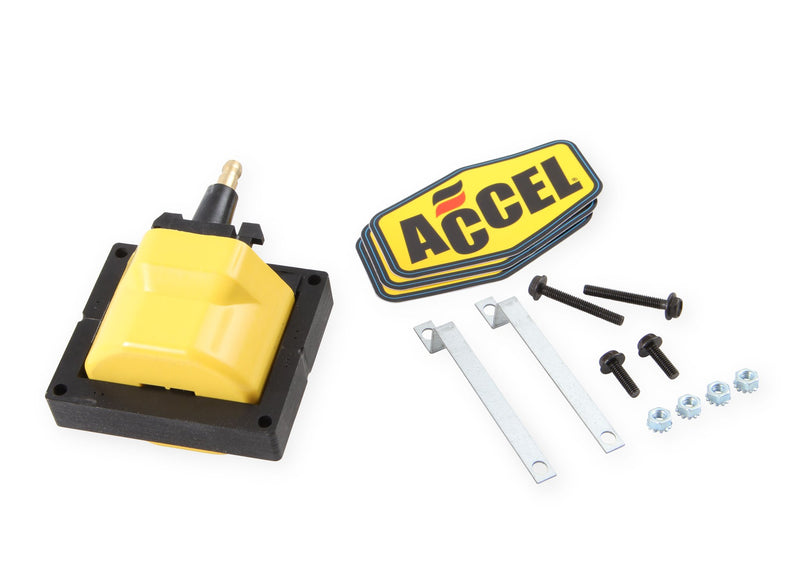

Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Compatible with late model GM computer controlled remote mount HEI systems. Direct bolt-in, plug-in replacement. Brass coil wire contact increases energy transfer and resists corrosion better than aluminum. Complete with new mounting hardware.
Features & Benefits
Highly Specialized Silicone Magnetic Steel Cores
Fits: This GM HEI remote mount coil has a maximum voltage of 48,000 volts.
Installation note: Coil may not fit some GM applications within the year models.
| Color | Yellow |
| Maximum Voltage | 48,000 volts |
| Peak Increase in Energy vs. OE | 36% |
| Primary Resistance | 0.3 Ohms |
| Quantity | 1 |
| Quantity Per Pkg. | 1 |
| Secondary Resistance | 8.8 k Ohms |
| Turns Ratio | 134:1 |
| Weight | 1.4500 |
